Name: DELMER SUMO SERIES SCALE
Brand: Delmer Group
Price: 33040.0 INR
Availability: InStock

DELMER SUMO SERIES SCALE

₹33,040.00

Description
Ask a question
Review

MODEL	CAPACITY	READ.	PAN
TD S1	1000	100	1000 X 1000
TD S1.5	1500	200	1200 X 1200
TD S2	2000	200	1200 X 1200
TD S3	3000	500	1500 X 1500
TD S5	5000	500	1500 X 1500

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

Delmer Platform Scale With ABS Indicator

₹11,798.82 ₹9,438.82 Save 20%

Description
Ask a question
Review

Platform scale has wide applications industries and can be customized in various pan sizes, capacities and readabilities.

MODEL	CAPACITY (KG)	READ.	PAN
TD 40	40.00	5.00	SS 300 X 300
TD 60	60.00	10.00	SS 300 X 300
TD 60	60.00	10.00	SS 400 X 400
TD 120	120.00	20.00	SS 400 X 400
TD 150	150.00	20.00	SS 500 X 500
TD 200	200.00	20.00	SS 500 X 500
TD 200	200.00	20.00	SS 600 X 600
TD 300	300.00	50.00	SS 600 X 600
TD 500	500.00	50.00	SS 600 X 600
TD 500	500.00	50.00	MS 600 X 600
TD 500	500.00	50.00	MS 750 X 750
TD 600	600.00	100.00	MS 750 X 750
TD 600	600.00	100.00	MS 900 X 900
TD 800	800.00	100.00	MS 900 X 900

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

Delmer Electronic Weighing Scale With SS Waterproof Indicator

₹8,378.00

Description
Ask a question
Review

Platform Scale

Model	Capacity (kg)	Readability (g)	Pan Size (mm)
TD - 40	40	5	SS 300 X 300
TD - 50	50	5	SS 400 X 400
TD - 60	60	10	SS 400 X 400
TD - 100	100	10	SS 400 X 400
TD - 120	120	10	SS 400 X 400
TD - 150	150	20	SS 500 X 500
TD - 200	200	20	SS 500 X 500
TD - 200	200	20	SS 600 X 600
TD - 300	300	50	SS 600 X 600
TD - 500	500	50	SS 500 X 500
TD - 500	500	50	SS 600 X 600
TD - 500	500	50	SS 750 X 750

Specification

With SS 304 PAN Fully Powder Coated Structure with Heavy Gauge.

Display: LED 7 digit (7 Segment LED), TARE facility with zero function.

Government certified from legal metrology department.

With IP 67 Water Proof Indicator.

With Piece Counting, Litter Mode.

With SS Water Proof Indicator

With 1 Year Warranty.

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

Delmer Platform Scale with MS Chequred Plate

₹9,912.00

Description
Ask a question
Review

Platform Scale

Model	Capacity (kg)	Readability (g)	Pan Size (mm)
TD-300	300	50	MS 600 X 600
TD-500	500	50	MS 600 X 600
TD-500	500	50	MS 750 X 750
TD-600	600	100	MS 750 X 750
TD-600	600	100	MS 900 X 900
TD-800	800	100	MS 900 X 900

Specification

Powder quoted anti rusting long life structure
MS Chequred Plate Export Quality
With ABS Indicator.
Display:LED 7 digit (7 Segment LED), TARE facility with zero function.
Government certified from legal metrology department.
With Battery Backup
With Government Stamping
With 1 Year Warranty

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

DIGITAL LOAD CELLS WITHOUT JUNCTION BOX

₹0.00

Description
Ask a question
Review

Advantages - Featured :

Finite element forcing structure analysis
Accurate temperature compensation
Hermetically Sealed – Laser welded
Detail verification of IP Protection
Detail vacuum leaking test
Lighting Protection Up to 80000 Amp
No junction box connection – Reliable transmission
Analysis & diagnostic for Temperature, Angle, Open enclosure, transmission signals etc.

Technical Specifications :

Parameters	Descriptions
Make	DELMER
Housing (Can) Material	Alloy Steel
Type	Self-centering column design – Digital LC without JB
Rated Capacity	20, 30, 40 50Ton
Division	C3 (3000 divisions)
Type	Digital
Communication BPS	9600
Combined Error	±0.02% FS
Creep at 30mins	±0.02% FS
Operating Temp	-30～+70℃
Excitation	9-12V Dc , Max Exc -20V
Safe Overload	150%
Ultimate Overload	300%
Combined Error	< +/- 0.02%
IP Protect	IP69K
Communication Mode	RS 485
Tolerance on Rated out put	Max. +/- 0.002%
Max Transmitting Dist.	300mtr
Load Cell Cable	SS Braided

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

Delmer Electronic Platform Weighing Scale 50kg

TD 50

₹8,000.00 ₹7,499.00 Save 6%

Delmer Electronic Platform Weighing Scale 50kg

Description
Ask a question
Review

TD - 50

Specifications:

With SS 304 PAN Fully Powder Coated Structure with Heavy Gauge.
With ABS Indicator.
Display: LED 7 digit (7 Segment LED), TARE facility with zero function.
Government certified from legal metro-logy department.
Widely Used for Industries , Gyms , Floor Mills , Grocery Stores etc.
With Piece Counting, Litter Mode.
With 1 Year Warranty.
Battery backup 2 days.
Platform size : 400 x 400 mm.
Capacity : 50kg.
Readability : 5 gram

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

Delmer Electronic Platform Weighing Scale 150kg

TD 150

₹9,440.00 ₹9,438.82 Save 0%

Delmer Electronic Platform Weighing Scale 150kg

Description
Ask a question
Review

TD - 150

Specifications:

With SS 304 PAN Fully Powder Coated Structure with Heavy Gauge.
With ABS Indicator.
Display: LED 7 digit (7 Segment LED), TARE facility with zero function.
Government certified from legal metro-logy department.
Widely Used for Industries , Gyms , Floor Mills , Grocery Stores etc.
With Piece Counting, Litter Mode.
With 1 Year Warranty.
Battery backup 2 days.
Platform size : 400 x 400 mm.
Capacity : 150kg.
Readability : 10 gram

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

Delmer Electronic Platform Weighing Scale 200kg

TD 200

₹10,618.82 ₹9,320.82 Save 12%

Delmer Electronic Platform Weighing Scale 200kg

Description
Ask a question
Review

TD - 200

Specifications:

With SS 304 PAN Fully Powder Coated Structure with Heavy Gauge.
With ABS Indicator.
Display: LED 7 digit (7 Segment LED), TARE facility with zero function.
Government certified from legal metro-logy department.
Widely Used for Industries , Gyms , Floor Mills , Grocery Stores etc.
With Piece Counting, Litter Mode.
With 1 Year Warranty.
Battery backup 2 days.
Platform size : 400 x 400 mm.
Capacity : 200 kg
Readability : 20 gram

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

Delmer Industrial Crane Scale 1 to 30 Tons

S1T

₹28,000.00 ₹25,999.00 Save 7%

Delmer Industrial Crane Scale 1 to 30 Tons

Description
Ask a question
Review

Features:

Capacity: 1, 2, 3, 5, 10, 20, 30 tons

Double side display: 1 inch LED

Inclusive battery & power supply

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

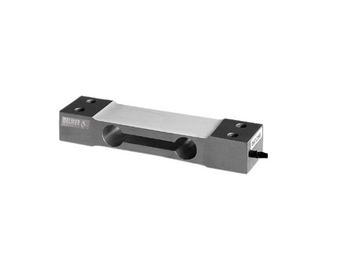

SINGLE POINT ALUMINIUM LOAD CELL-DPL601006

₹1,062.00

Description
Ask a question
Review

In the range of high quality load cell we offer Beam Type Load Cell in different size and shapes. Our product is very strong and used for long term usage. Our product is easy to install and use. Our products are elegantly designed in order to meet the needs of our most valuable clients. Owing to their low maintenance, easy operations and leak proof nature, these are extensively used by a number of industries in the market.

Our one of the best Table Top Load Cell DPL601006

is manufactured from high quality material which is sourced from reputed and reliable venders in the market. In the product range our product is available for various applications such as Bench, Counting.

Wiring Schematic Diagram:

Dimenstions:

Features:

Single Point Off-center Load Measuring Capability
Economical and Low Profile Cell
Aluminium-alloy, Colorless anodized
Glue sealed

Applications:

Bench, Counting & Postal Scales
Check Weighers(Recommended platform size : 250x350mm)

Dimenstions:

Load cell Capacity : 6, 10, , 20, , 30, 40
PrecisionC2 / C3	Insulation Resistance(MΩ)≥5000(100VDC)
Composition Error0.03 / 0.02	Excitation Voltage (V)9~12 (DC)
Rated Output (mv/v)2 ± 0.2	Compensated temp. Range (°C)-10~+40
Non-Linearity (%FS)0.03 / 0.017	Use Temp. Range (°C)-35~+65
Hysteresis (%FS)0.03 / 0.02	Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
Repeatability (%FS)0.01	Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
Creep (%FS/30min)0.02	Safe Overload (%FS)120
Zero Balance (%FS)± 1	Ultimate Overload (%FS)150
Input Resistance (Ω)400 ± 10	Defend GradeIP65
Output Resistance (Ω)350 ± 2	Cable4mm, 0.42mtr

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

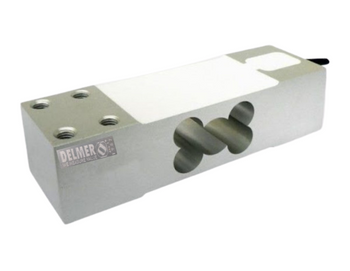

SINGLE POINT CONT'D LOAD CELL (ALUMINUM)- DPL 642006

₹1,475.00

Description
Ask a question
Review

We have a wide range of Aluminium Load Cell DPL642006 in our store which is manufactured using high grade raw material.

This load cells are specially designed for platform scale as well as check weighers.

Our product is used in various industries for various applications.

This load cell can be customized as per our customer's special need and requirements.

We are always demanded in the domestic as well as international market due to our world class customer services and product quality.

Wiring Schematic Diagram:

Dimenstions:

Features:

Single Point Off-center Load Measuring Capability
Economical and Low Profile Cell
Aluminium-alloy, Colorless anodized
Glue sealed

Applications:

Bench, Counting & Postal Scales
Check Weighers(Recommended platform size : 500x500mm)

Dimenstions:

Related Load (kg.) 100, 300
PrecisionC3	Insulation Resistance(MΩ)≥5000(100VDC)
Composition Error0.02	Excitation Voltage (V)9~12 (DC)
Rated Output (mv/v)2 ± 5	Compensated temp. Range (°C)-10~+40
Non-Linearity (%FS)0.017	Use Temp. Range (°C)-35~+65
Hysteresis (%FS)0.02	Temp. Effect on Zero (%FS/10°C)0.017
Repeatability (%FS)0.01	Temp. Effect on Span (%FS/10°C)0.017
Creep (%FS/30min)0.02	Safe Overload (%FS)120
Zero Balance (%FS)± 1	Ultimate Overload (%FS)150
Input Resistance (Ω)400 ± 10	Defend GradeIP65
Output Resistance (Ω)350 ± 2	Cable4mm, 3mtr

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

Delmer Singlepoint SS Loadcell - DPL41006

₹2,478.00

Description
Ask a question
Review

This product of DELMER is designed to weigh benches or table tops. The features of the product are as follows:

The product is easily installable
This has a tendency of gaining speed while weighing because of its high intensity natural frequency
It has a range of measuring tools along with it that helps weigh different types of materials
This product is perfect for mounting dimensions

The Single Point SS Load Cell DPL41006 has been devised keeping in mind the international standards of efficiency as well as design. The manufacturers at DELMER have undertaken several tests of this instrument to ensure that the product is endurable and sturdy. The best part of this product is that you do not have to worry about spending too much for this instrument. This is a low-profile product and is available online.

Our customers can find an extensive range of Bending Beam Load Cell DPL41006 model .. Manufactured from high quality stainless steel it has superb working performance which make it first choice among all. This product includes different features that abide the customer to appreciate. Perfect balancing, compensating and accurate measurement capacity that all factors which impress our buyers towards the organization. It is mostly suitable for small load measurement.

We strive to surplus our company goal of maximum customer satisfaction and every member as well as every product is engaged to achieve this motto. We believe in right product at the right price. These products can be gain at comparative low price from the market.

Our organization made this load cell in different designs and Eveready for custom solutions. More than thousands of industries is using this product and enjoying the real benefit. These innovative and flexible products are always appreciated by its users. These are best suitable for different measuring devices.

Wiring Schematic Diagram:

Dimenstions:

Features:

Tool steel Construction for Harsh application
Single Point Capability for Platform Scale
Minimum error for Off-Centre loading
Supports the Pan size up to 750X750(mm)
Low profile
100 kg. to 750 kg. capacities
Also available in Stainless Steel
Suitable for hygienic applications like Food, Dairy & Pharmaceutical Industries

Applications:

Medium Size Platform Scales
Bag Weighers
Hopper Weighers

Dimenstions:

Related Load (kg.) 500, 750, 1000
PrecisionC2 / C3	Insulation Resistance(MΩ)≥2000(100VDC)
Composition Error0.03 / 0.02	Excitation Voltage (V)10~15 (DC)
Rated Output (mv/v)2.0 ± 10%	Compensated temp. Range (°C)-10~+40
Non-Linearity (%FS)0.025	Use Temp. Range (°C)-20~+60
Hysteresis (%FS)0.02	Temp. Effect on Zero (%FS/10°C)0.0020
Repeatability (%FS)0.02 / 0.01	Temp. Effect on Span %FS/10°C)0.0015
Creep (%FS/30min)0.03	Safe Overload (%FS)150
Zero Balance (%FS)± 1.0	Ultimate Overload (%FS)250
Input Resistance (Ω)400 ± 10	Defend GradeIP65
Output Resistance (Ω)350 ± 2	Cable6mm, 3mtr

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

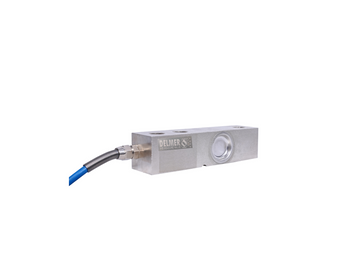

Delmer Shear beam Loadcells (DPL4011606)

₹6,490.00 ₹2,596.00 Save 60%

Description
Ask a question
Review

Delmer group is the most experienced, trusted and recommended single ended shear beam load cell manufacturer and supplier among the all due to unmatched product quality, bottom prices and best customer support. This DPL4011606 model specially designed for the tough relevance like truck scale, it is capable to work in different environmental conditions without any difficulties. This is fabricated from the high grade stainless steel and supreme quality raw material. It is suitable for all high capacity weighting applications. The clients can avail it in different sizes with suitable capacity as shown in the below table, furthermore the all technical details about it, is given in the below table and figures.

Wiring Schematic Diagram:

Dimenstions:

Rated Load (t)	A	B	C	D	E	M	d2	d1
0.5-2	130	32.8	15.8	25.4	76.2	M12*1.75	18	13
3T, 5T	171.5	38.0	19.8	38.1	95.3	M18*1.5	20	20

Features:

Alloy steel construction and hermetically sealed by welding to IP67 & IP68
Full range of capacities,
Simple construction.

Applications:

Electronic platform scale
Vehicle scale
Railroad scales
Tank weighing
Hopper weighing etc...

Dimenstions:

Related Load (kg.) 500, , 1T, 2T, 5T
PrecisionC3	Insulation Resistance(M Ω)≥5000(100VDC)
Composition Error± 0.03 / 0.02	Excitation Voltage (V)9~12 (DC)
Rated Output (mv/v)3 ± 0.0002	Compensated temp. Range (°C)-10~+40
Non-Linearity (%FS)0.03 / 0.02	Use Temp. Range (°C)-20~+55
Hysteresis (%FS)0.03 / 0.02	Temp. Effect on Zero (%FS/10°C)0.019
Repeatability (%FS)0.02 / 0.01	Temp. Effect on Span (%FS/10°C)0.011
Creep (%FS/30min)0.03 / 0.02	Safe Overload (%FS)120
Zero Balance (%FS)± 1	Ultimate Overload (%FS)150
Input Resistance (Ω)350 ± 5	Defend GradeIP68
Output Resistance (Ω)350 ± 3	Cable4mm, 3mtr

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

Delmer Loadcell for Weighbridges and truck scales ( Cup & Ball type part no. DPL406161 )

₹12,980.00 ₹11,800.00 Save 9%

Description
Ask a question
Review

We are one of the appreciable organizations engaged in offering Double Ended Shear Beam Load Cell - DPL406161 which is manufactured using high grade steel. Our products are designed and produced under the supervision of our experts and experienced engineers to provide a perfect solution to the client. We offer easy to install products which have many features such as reliable, durable, long working life, well furnished.

Wiring Schematic Diagram:

Dimenstions:

Features:

Alloy steel structure
Glue sealing & Welded sealing
Nickel plated, Waterproof & anti-corrosion
Suitable for multiform environments
Suitable for electronic truck scale
Other electronic weighing devices

Parameters: (Analog Load Cell)

Related Load (Ton) 10 / 20 / 30 / 40

PrecisionC2 & C3

Composition Error± 0.03 & ± 0.02

Rated Output2.0 ± 0.002

Creep (%FS/30min)0.023 / 0.016

Zero Balance (%FS)± 1.5

Input Resistance (Ω)700 ± 10

Output Resistance (Ω)750 ± 5

Insulation Resistance(MΩ)≥5000(100VDC)

Excitation Voltage (V)9~12 (DC)

Compensated temp. Range (°C)-10~+40

Use Temp. Range (°C)-20~+55

Temp. Effect on Zero (%FS/10°C)0.017 / 0.011

Temp. Effect on Span (%FS/10°C)0.029 / 0.019

Safe Overload (%FS)120

Ultimate Overload (%FS)150

Defend GradeIP66 / IP68

Parameters: (Digital Load Cell)

Related Load (Ton) 10 / 20 / 30 / 40

PrecisionC3

Composition Error± 0.02

Rated Output1,000.000 Counts

Creep (%FS/10min)0.02

Excitation Voltage (V)5.5~12 (DC)

Compensated temp. Range (°C)-10~+40

Use Temp. Range (°C)-20~+60

Temp. Effect on Zero (%FS/10°C)0.019

Temp. Effect on Span (%FS/10°C)0.011

Safe Overload (%FS)150

Defend GradeIP67

A/D Module Resolution1.000.00

Communication BPS9600

Communication Port485/4 Cable

Digital Reburfishing Frequency10~80 / S

Maximum of Verification scale Intervals5000 n max

Max. Communication Range1200 m

No. of Address Bus32

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.

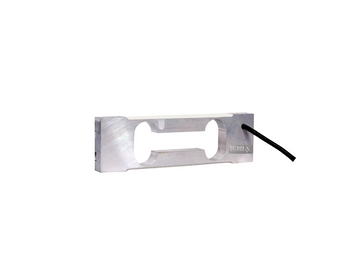

SINGLE POINT MINIATURE LOAD CELL (DPL650225)

₹1,593.00

Description
Ask a question
Review

In spite of the fact that there are numerous sorts of sensors, strain gage sensors like miniature load cell are the for the most part utilized. Then again, advanced load cells change over a heap into information coherent by a PC with no requirement for extra flag refreshers. You simply need to associate your advanced load cell to your USB port and that is it, you can now begin measuring. Advanced sensors are otherwise called computerized sensors. Delmer Group offer a greater adaptability, prevalent linearity and precision than the contenders furthermore and essential they offer proficient specialized direction in giving custom arrangements.

On the site you can browse o extensive variety of advanced cells. For example remote sensors, half breed stack cells, low limit at the main view as it were. Likewise you can discover various limits and innovations. You can purchase USB computerized cells, simple cells, resistive advanced interfaces, simple, resistive interfaces extras stack cell units, stack cell programming.

We engaged in manufacturing and supplying the finest quality of Miniature Load Cell. Our industrial purpose used products DPL650225 has various features like durability, dimensional accuracy. They are designed in a way that they fulfil a specific need and requirements of the client.

Wiring Schematic Diagram:

Dimenstions:

Features:

Up to 1,00,000 divisions short term precision and compression application
Off-center load compensated
Single point 200X200mm platform
IP66 protection

Applications:

Jewellery scales
Diamond scales
Small bagging machines
Thread tension measurement

Dimenstions:

Rated Load (Grams) 300, 600, 1200
PrecisionC2 / C3	Insulation Resistance(MΩ)≥5000(100VDC)
Composition Error0.005	Excitation Voltage (V)9~12 (DC)
Rated Output (mv/v)1.6 ± 0.5	Compensated temp. Range (°C)-10~+40
Non-Linearity (%FS)0.03 / 0.017	Use Temp. Range (°C)-35~+65
Hysteresis (%FS)0.03 / 0.02	Temp. Effect on Zero (%FS/10°C)0.03/0.017
Repeatability (%FS)0.01	Temp. Effect on Span (%FS/10°C)0.03/0.017
Creep (%FS/30min)0.02	Safe Overload (%FS)120
Zero Balance (%FS)±1	Ultimate Overload (%FS)150
Input Resistance (Ω))400±10	Defend GradeIP65
Output Resistance (Ω)350± 2	Cable4mm, 1ft

Contemporary step towards Progress.

The Delmer Group is internationally acclaimed for over two decades with diversified eweighing technologies in weighing and jewellery manufacturing machines. Driven by immense passion in this industry, we deliver off-beat technology to suit every pocket. Partnering with giants in USA and Europe, we focus on electronics and mechanics of buliding a machine in our state of the art manufacturing unit in Vadodara, Gujarat. We believe in delivering products of highest quality and supreme standard to all our customers who have trusted us over all these years.

OUR VISION

"To become the premium technology, quality and service providers in our industries."

We understand that quality of any product delivered is of utmost importance. Every good purchased is of great value to the buyer. So, we believe in accuracy and quality worth every penny of the buyer. There is no option of second best when it comes to Delmer group. And this is what drives our team and is reflected in every product. We know that “Ideal” is the only option you should choose.

OUR MISSION

"Creation of value for our customers by bringing in technologically advanced high quality products and services at an achievable price."

Here, at Delmer Group, quality and consistency in delivering promises is what we stand for. Our goal is to make technologically progressive products and solutions for our customers for which we strive unanimously.
